Wideband RF Mixer Structure

© I told...I gave...

Prepared by: mutified

Table of contents

DIAGRAMS & OPL
OPD & OPL

DIAGRAMS & OPL

OPD & OPL

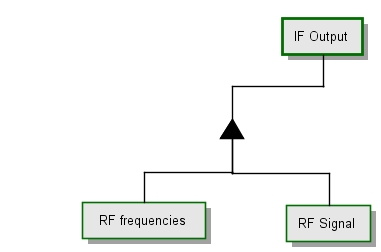

IF Output unfolded

IF Output is physical.
IF Output consists of RF Signal and many RF frequencieses.
            RF Signal is physical.
            RF frequencies is physical.

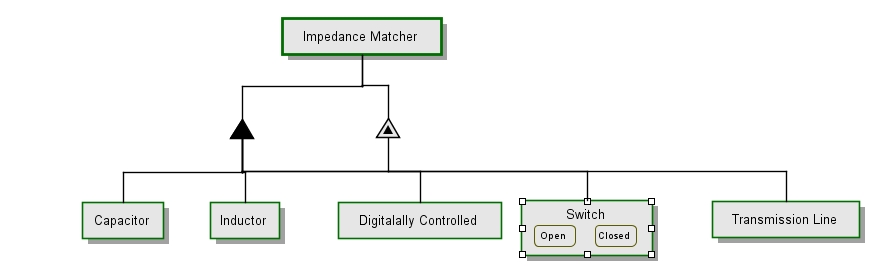

Impedance Matcher unfolded

Impedance Matcher is physical.
Impedance Matcher exhibits Digitalally Controlled.
Impedance Matcher consists of Switch, Capacitor, Inductor, and Transmission Line.
            Switch is physical.
            Switch can be Open or Closed.
            Capacitor is physical.
            Inductor is physical.
            Transmission Line is physical.

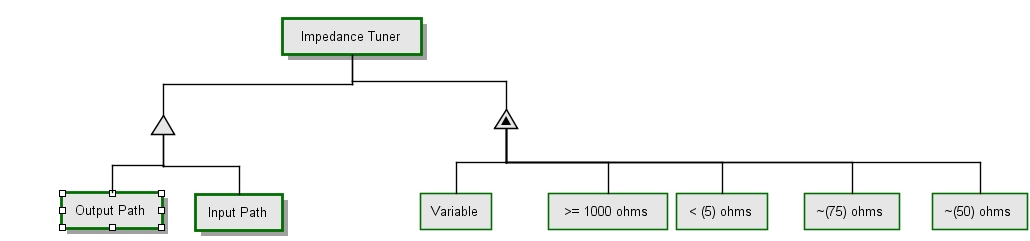

Impedance Tuner unfolded

Impedance Tuner is physical.
Impedance Tuner exhibits Variable, ~(50) ohms, ~(75) ohms, < (5) ohms, and >= 1000 ohms.
Input Path is physical.
Input Path is an Impedance Tuner.
Output Path is physical.
Output Path is an Impedance Tuner.

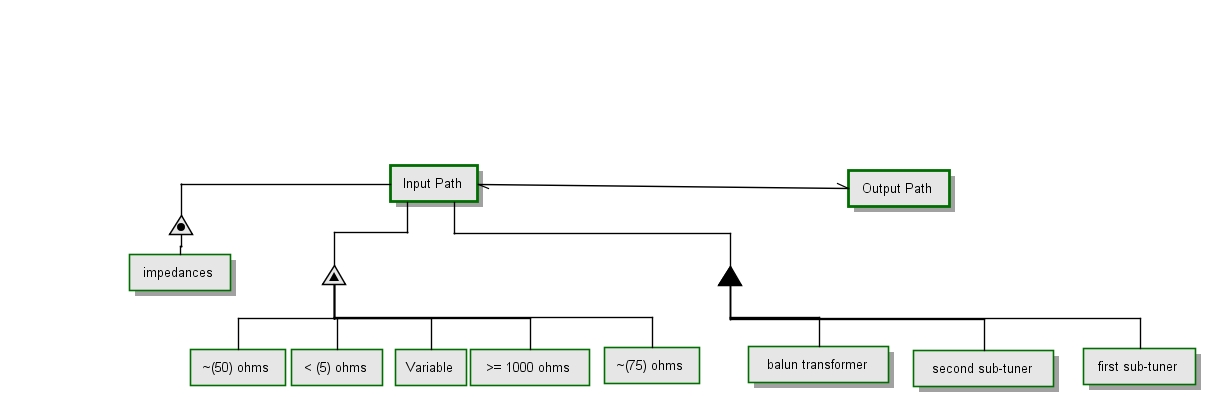

Input Path unfolded

Output Path is physical.
Output Path and Input Path are equivalent.
Input Path is physical.
Input Path exhibits Variable, ~(50) ohms, ~(75) ohms, < (5) ohms, and >= 1000 ohms.
Input Path consists of first sub-tuner, second sub-tuner, and balun transformer.
            first sub-tuner is physical.
            second sub-tuner is physical.
            balun transformer is physical.
impedances is physical.
impedances is instance of an Input Path.

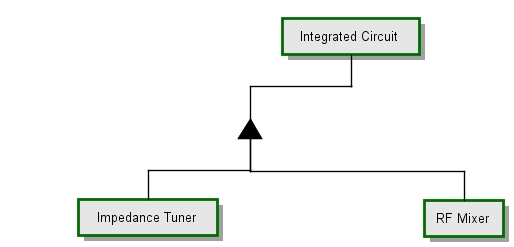

Integrated Circuit unfolded

Integrated Circuit is physical.
Integrated Circuit consists of RF Mixer and Impedance Tuner.
            RF Mixer is physical.
            Impedance Tuner is physical.

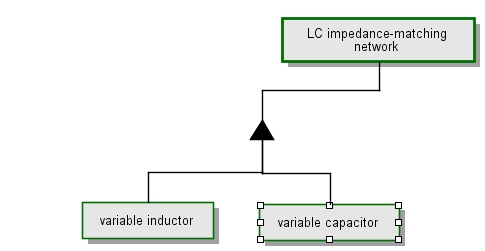

LC impedance-matching network unfolded

LC impedance-matching network is physical.
LC impedance-matching network consists of variable capacitor and variable inductor.
            variable capacitor is physical.
            variable inductor is physical.

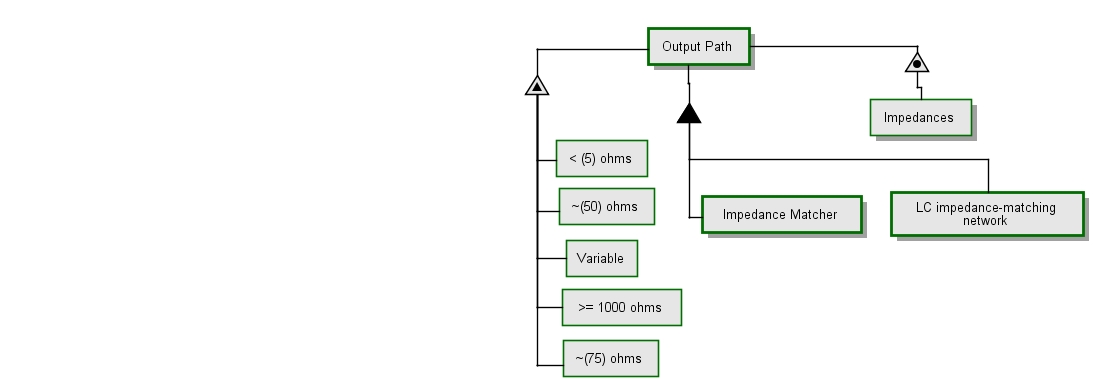

Output Path unfolded

Output Path is physical.
Output Path exhibits Variable, ~(50) ohms, ~(75) ohms, < (5) ohms, and >= 1000 ohms.
Output Path consists of LC impedance-matching network and 2 Impedance Matchers.
            LC impedance-matching network is physical.
            Impedance Matcher is physical.
Impedances is physical.
Impedances is instance of an Output Path.

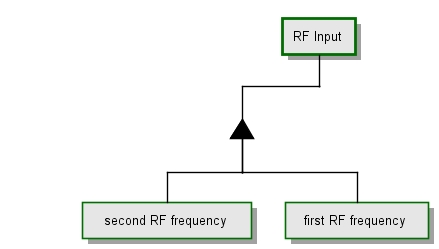

RF Input unfolded

RF Input is physical.
RF Input consists of first RF frequency and second RF frequency.
            first RF frequency is physical.
            second RF frequency is physical.

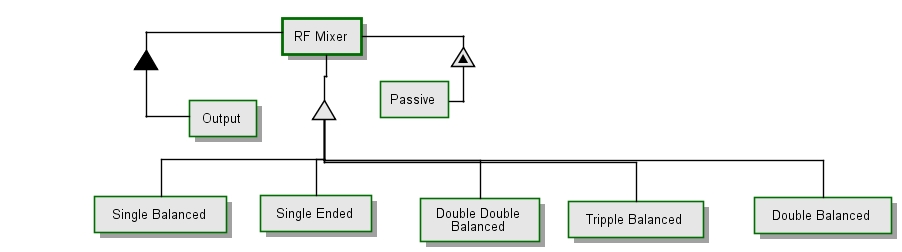

RF Mixer unfolded

RF Mixer is physical.
RF Mixer exhibits Passive.
RF Mixer consists of Output.
            Output is physical.
Single Ended is physical.
Single Ended is a RF Mixer.
Single Balanced is physical.
Single Balanced is a RF Mixer.
Double Balanced is physical.
Double Balanced is a RF Mixer.
Tripple Balanced is physical.
Tripple Balanced is a RF Mixer.
Double Double Balanced is physical.
Double Double Balanced is a RF Mixer.

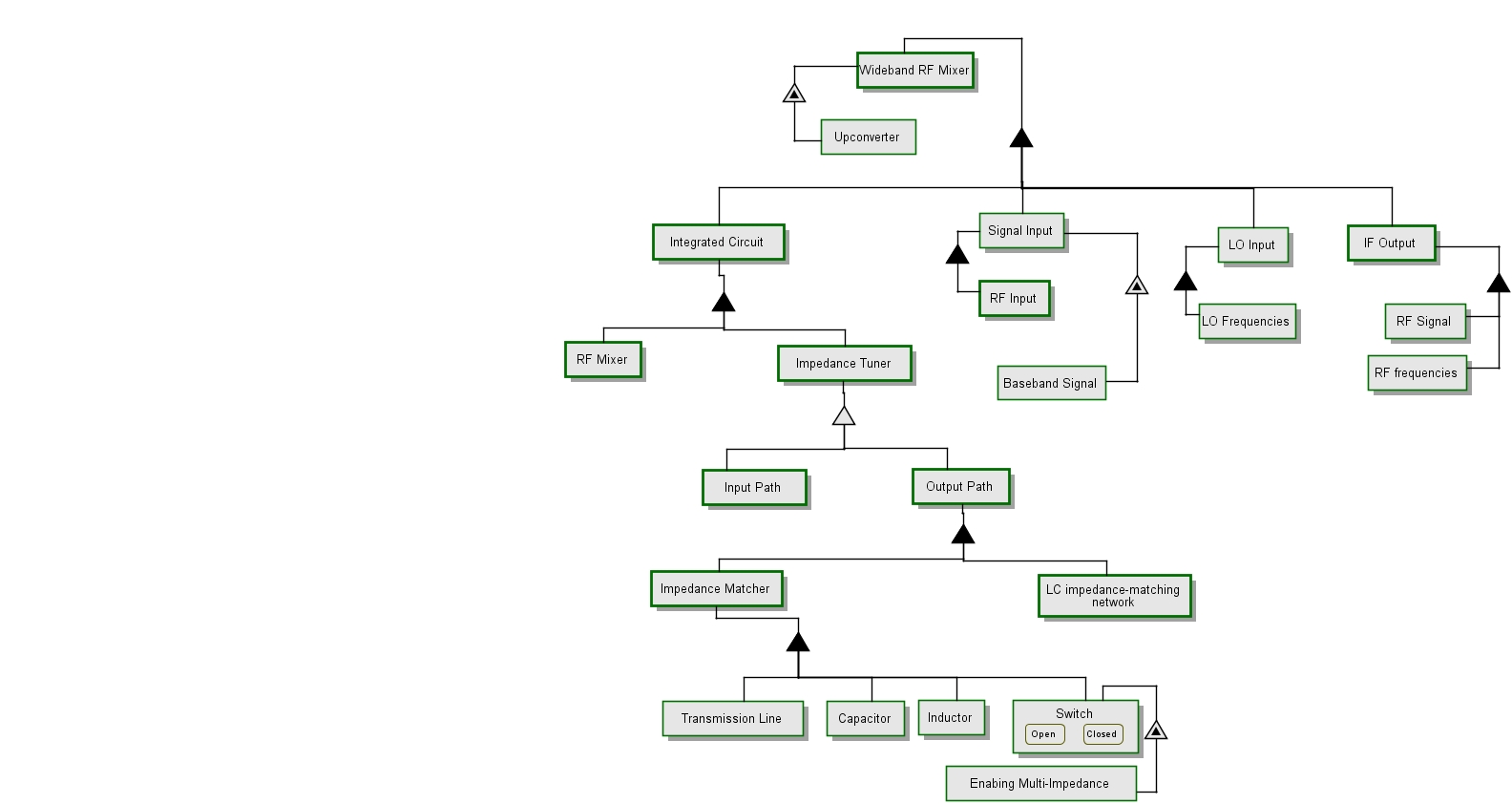

SD

Wideband RF Mixer is physical.
Wideband RF Mixer exhibits Upconverter.
Wideband RF Mixer consists of Signal Input, LO Input, IF Output, and Integrated Circuit.
            Signal Input is physical.
            Signal Input exhibits Baseband Signal.
            Signal Input consists of many RF Inputs.
                        RF Input is physical.
            LO Input is physical.
            LO Input consists of many LO Frequencieses.
                        LO Frequencies is physical.
            IF Output is physical.
            IF Output consists of RF Signal and many RF frequencieses.
                        RF Signal is physical.
                        RF frequencies is physical.
            Integrated Circuit is physical.
            Integrated Circuit consists of RF Mixer and Impedance Tuner.
                        RF Mixer is physical.
                        Impedance Tuner is physical.
Input Path is physical.
Input Path is an Impedance Tuner.
Output Path is physical.
Output Path is an Impedance Tuner.
Output Path consists of LC impedance-matching network and 2 Impedance Matchers.
            LC impedance-matching network is physical.
            Impedance Matcher is physical.
            Impedance Matcher consists of Switch, Capacitor, Inductor, and Transmission Line.
                        Switch is physical.
                        Switch can be Open or Closed.
                        Switch exhibits Enabing Multi-Impedance.
                        Capacitor is physical.
                        Inductor is physical.
                        Transmission Line is physical.

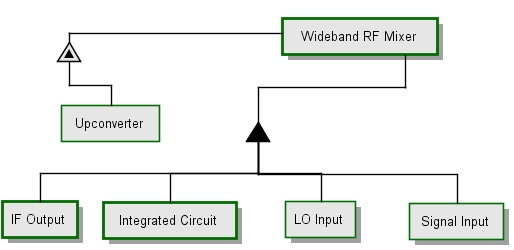

Wideband RF Mixer unfolded

Wideband RF Mixer is physical.
Wideband RF Mixer exhibits Upconverter.
Wideband RF Mixer consists of Signal Input, LO Input, IF Output, and Integrated Circuit.
            Signal Input is physical.
            LO Input is physical.
            IF Output is physical.
            Integrated Circuit is physical.
